Description

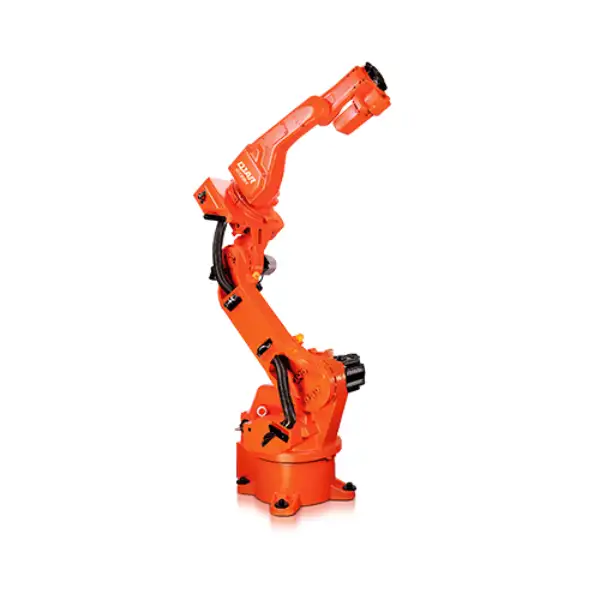

1. Overview of Welding Robot QJAR QJRH4-1A
The welding robot QJAR QJRH4-1A is a next-generation arc welding robotic arm that features high precision and a wide range of built-in professional welding functions. A major advantage of this equipment is ít low maintenance cost, allowing businesses to ensure long-term operation without the burden of high budgets.
Especially, to guarantee absolute quality upon delivery, every QJAR QJRH4-1A unit undergoes strict quality checks before shipping, including up to 108 hours of non-stop testing.
2. Detailed Specifications
| Specification |
Detail |
| Axes | 6 |
| Payload | 4 kg |
| Repeatability | ±0.05 mm |
| Max Armspan | 1410.5 mm |
| Motion Ranges (J1–J6) | ±168°, +150°/–89°, +85°/–111°, ±167°, +58°/-217°, ±360° |
| Motion Speeds (J1–J6) | 200°/s, 200°/s, 234°/s, 349°/s, 355°/s, 481°/s |
| Allowable Torque (J4-J6) | 10.51Nm, 10.51 Nm, 2.94 Nm |
| Inertia Moment (J4-J6) | 0.38 kg.m², 0.38 kg.m², 0.03 kg.m² |
| Robot Body Weight | 150 kg |
| Robot Body Protection Degree | IP30 |
| Power Capacity | 3.2 kVA |
| Cabinet Size | 580 x 650 x 960 mm |
| Cabinet Weight | 130 kg |
| Source | 3-phase 4-wire 380V |
| Mounting Options | Wall, ceiling |
3. Applications of Robot QJAR QJRH4-1A
The welding robot QJAR QJRH4-1A is a dedicated solution for today’s popular arc welding technologies, including MIG, MAG, and TIG. It is widely utilized across various industries:
- Automotive and motorcycle supporting industries: Specialized for welding vehicle frames, exhaust pipes, and complex parts that need to look clean, neat, and super precise.
- Furniture and household appliances manufacturing: Perfect for fabricating steel tube structures, metal tables and chairs, shelving systems, and decorative items.
- Mechanical engineering and fabrication: A solid choice for welding light steel frames, electrical cabinets, and thin metal boxes. and industrial tanks.
4. Key Features of Welding Robot QJAR QJRH4-1A
This robot QJAR QJRH4-1A comes with some practically impressive specs that give it a real edge over others in its class:
- Flawless repeatability: With a tolerance of just ±0.05 mm, the robot QJAR QJRH4-1A ensures uniform, structurally sound, and consistent welds across all products.
- Great flexibility: Thanks to its 6-axis design and a generous maximum reach of 1410.5 mm, it easily gets into tight corners and handles tricky, uniquely shaped workpieces.
- Incredible motion speed: Joint speeds range from 200°/s for the main axes (J1, J2) up to 481°/s for the J6 wrist axis, minimizing welding cycle times to the maximum.
- Versatile installation options: The equipment supports both wall-mount and ceiling-mount configurations, optimizing factory floor space and making it ideal for tight production environments.
5. Benefits of purchasing spare parts and equipment at Robotnext
- Committed to providing genuine products, materials, and equipment for industrial robots and automation systems, meeting the quality and needs of businesses.
- A team of experienced staff and technicians determines our products.
- Customers can contact directly via Hotline 090 99 148 37 – 09 388 93 197 for the most accurate and detailed technical advice. As well as receiving incentives for the product.
- Shipping Policy: After receiving the order information, Robotnext’s staff will confirm and check the inventory of goods. Send a quote to the customer about the order value and accompanying shipping costs.
- Warranty policy due to technical errors and changes is clearly defined. See details here.
